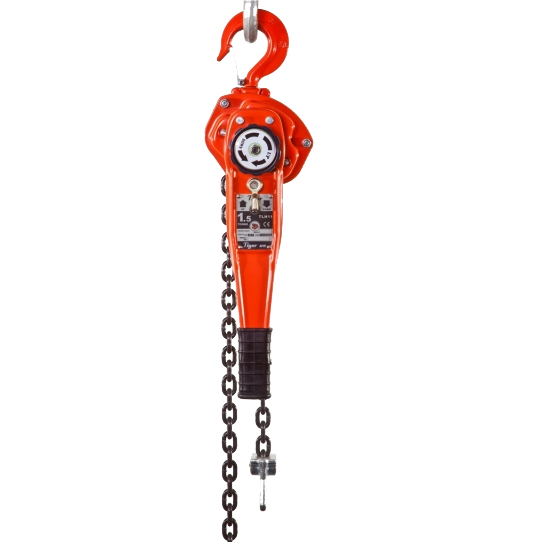

Tiger Lever Hoist

 Lightweight, compact and rugged construction with the handle, gear case and brake cover made entirely of pressed steel, producing strong resistance to impact damage. Using only the highest quality materials precisely machined throughout ensures the TLH11 is the ideal hoist for long term use with less maintenance and servicing costs. These units meet and exceed all the requirements within BS EN 13157:2004

Main Features

  • Range from 250kg – 10000kg
  • Rugged steel body construction
  • Lightweight and portable
  • 360 degree handle rotation
  • Short stroke and low lever pulling effort
  • Easy single-hand "freewheeling" operation
  • Drop forged & heat treated alloy hooks
  • High quality alloy calibrated load chain
  • Safe reliable twin pawl mechanical brake
  • Guaranteed light load protection
  • Heat treated alloy steel triple spur gears and pinion shaft
  • Heavy duty chain end stop
  • Operating temperature of -50°C to +50°C
  • Proof tested to 1.5 times rated capacity
  • 1.5m height of lift as standard but can be chained to exact requirements
  • Individual spares readily available



0.5t

0.75t-3.0t

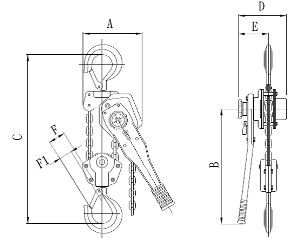

6.0t

10.0t



Product Code

Capacity (tonne)

Effort (kg)

Dimensions (mm)

Load Chain

Standard HOL (m)

Mass Kg

@ std HOL

A

B

C

D

E

F

F1

Diameter
(mm)

No. of falls

LH-0025

0.25

30

60

156

245

82

63

27

22

Ø4.0

1

1.0

2.2

LH-0050

0.5

34

75

276

270

100

75

30

26

Ø5.0

1

1.0

3.9

LH-0075

0.75

22

128

240

275

158

99

30

26

Ø6.3

1

1.5

7.2

LH-0150

1.5

26

154

360

320

172

104

38

34

Ø7.1

1

1.5

10.1

LH-0300

3.0

38

182

360

400

195

108

43

38

Ø10.0

1

1.5

18.0

LH-0600

6.0

40

242

360

570

195

108

57

52

Ø10.0

2

1.5

28.0

LH-1000

10.0

??

370

360

630

195

108

71

56

Ø10.0

3

1.5

42.4
